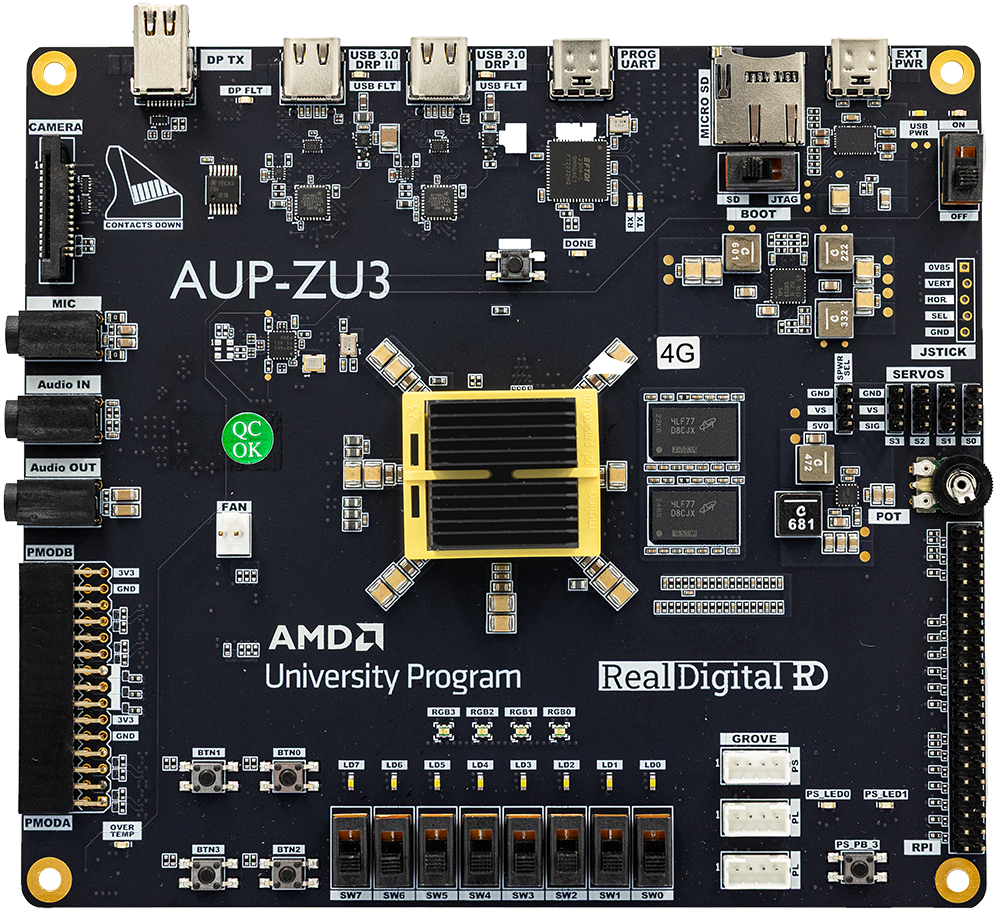

AUP-ZU3 Board

The AUP-ZU3 is a high-performance embedded computing platform built around AMD's Zynq UltraScale+ MPSoC "ZU3EG" device. This advanced system-on-chip combines a powerful multicore Arm® processing system (PS) with a rich set of peripherals and high-speed interfaces, all tightly integrated with ASIC-class programmable logic (PL) fabric.  With over 6,000 high-bandwidth interconnects between the PS and PL, the ZU3's architecture ensures seamless, high-speed communication that far outperforms traditional multichip solutions.

The ZU3's programmable logic fabric enables high-speed, low-latency, and fully customizable hardware acceleration for compute-intensive tasks such as graphics rendering, video processing, and AI workloads. Developers can implement custom IP blocks to create specialized compute engines like Deep Learning Processing Units (DPUs), hardware co-processors, or custom memory hierarchies, unlocking capabilities and enabling powerful new designs that are simply not possible with fixed-function processor architectures.

The ZU3 board is fully compatible with the PYNQ framework. PYNQ streamlines the integration of custom hardware into digital systems, and enhances system design by offering advanced visualization, analysis tools, and a Python-based interface that eliminates the need for traditional, hardware-centric design environments. The open-source nature of PYNQ configurations makes them an excellent foundation for more complex and tailored designs.

PYNQ leverages Jupyter Notebooks, an interactive web application that blends live code, equations, visualizations, and documentation. ZU3 notebooks include reusable IP blocks (overlays), ARM code, and browser-based tools for data visualization and device control - everything needed to quickly prototype and develop high-performance applications.

Special Introductory Pricing - while supplies last! Limited to one per customer.
4G Memory
 $159.00 $99.00
8G Memory $179.00 $129.00
Accessory Kit USBC power supply, USB cables, SD Card + $30.00
Create Academic Account to Purchase

The ZYNQ UltraScale+ XCZU3EQ device in the SFVC784 package includes:

  • A 64-bit quad-core ARM Cortex-A53 and a 32-bit dual-core ARM Cortex-R5F
  • Large on-chip cache memories for each core
  • A tightly coupled and large programmable logic array with 154K logic cells and 360 DSP slices
  • An ARM Mali-400 based GPU and NEON advanced SIMD media processing engine
  • A single and/or double precision floating point unit
  • 256Kbytes of PS RAM, and a combined 9.4Mb of UltraRAM and distributed RAM
  • Support for 32-bit, 3200MHz DDR4 with an 8-channel DMA controller
  • Support for PCI Express, SATA, DisplayPort, Gbit Ethernet, USB3 and other common ports
  • System Memory Management Unit

The ZU3 includes:

  • Multiple USB ports, including a USB2 port for UART/JTAG and two USB3 dual-role ports
  • Up to 8GBtyes of 32-bit, 3200MTPS DDR4 connected to the Processing System (PS)
  • Mini DisplayPort and I2S audio codec
  • MicroSD card reader
  • Raspberry PI, Grove, and Pmod+ expansion connectors
  • GPIO devices including pushbuttons, slide switches, LEDs, RGB LEDs
  • Multiple configurable, clean and stable clock sources
